MCP server · computer vision

Compare your UI. Inspect the differences. Refine the details.

A reference goes in, your build goes in. Get visual scores and a suggested fix list. Check the diagnostics to decide what to change.

Install it Watch the case study View on GitHub ↗
reference
Reference design: a purple-to-orange brand gradient
candidate

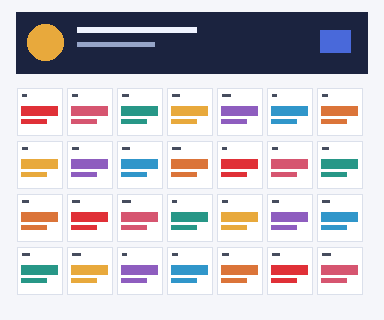

Candidate build: the same gradient with its hues drifted

Illustrative scorecard. These values were not measured from the images shown.

In practice · iOS recreation

Drylendar, rebuilt as DryLender.

See how regional image diagnostics and sampled transitions helped guide an independent iOS recreation. These edited walkthroughs provide visual context, not a synchronized benchmark. Play and scrub the reference and clone separately.

Original reference

Drylendar

Silent excerpts of the settings, calendar settings and drink editor. Watch the settings controls and the logging card's changing drink count and appearance.

Edited and redacted reference footage. Original app: Drylendar by App Craft Consulting.

Read the visual walkthrough

The portrait recording opens in Settings with purchases, notifications, calendar, social-account and privacy controls. A cut shows Intermediate shades, appearance choices and a timezone row whose value is covered. Another cut opens the green zero-drink editor. It briefly closes to the calendar and reopens. The count rises through ten as the card changes through yellow, orange and red. A Blackout toggle changes it between red and dark gray. Down/up arrows, Submit and Cancel remain visible. There is no audio.

Open original video

Independent clone

DryLender

Silent demo of the recreated calendar, logging card and supporting screens. Watch the calendar layout, card opening and number changes in the recreation.

Edited DryLender development demo.

Read the visual walkthrough

A title introduces DryLender. Captioned segments show a monthly calendar, a SobriScore sheet and yearly grids, then range selection and a multi-day drink card. Balloons cross the calendar. A past-day editor changes a drink count and returns to the calendar. Party mode opens a drink card and then a Lock Screen Live Activity with the iOS permission prompt still open. Reward cards open and animate. The final section opens Settings and a CSV export share sheet. The edit includes cuts and held frames. There is no audio.

Open clone video

Independent recreation. No affiliation with or endorsement by Drylendar. Third-party UI and footage are not covered by this repository's MIT license.

Compare a region. Refine the detail.

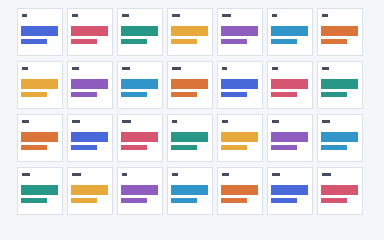

We extracted reference frames and paired them with clone screenshots. Regional compare_designs diagnostics guided calendar geometry and log-card styling, separating local differences from changes in scroll position.

For the log-card opening and a number change, selected frame sequences helped us inspect changes in motion energy and timing with compare_motion. Similar energy does not establish matching animation.

The useful lesson

Select the same state first, then compare it. Extracting matching frames was a manual step here; keeping frame selection separate from scoring made the diagnostics easier to interpret.

Visual scores do not establish gesture correctness. Taps, swipes and navigation need separate behavioral checks.

That preparation step now has a tool. extract_video_frames takes a short window from a local recording and returns absolute frame paths, source timestamps and a saved manifest. Extraction timestamps support manual preparation; comparison does not itself establish matched actions or cadence.

Recording context and comparison limits

These edits follow different routes and timings, so playback is independent. The original includes only settings, calendar settings and the drink editor. The clone demo predates the build-4 tap fix and does not show the latest build.

The development comparisons used matching regions and selected interactions, not these complete edits. For a repeatable comparison, retain each source timestamp and crop, and sample the same action at a comparable cadence and duration. Read motion_status first; static or unreliable captures are inconclusive. No whole-app fidelity score is claimed.

Use Design Compare MCP in your workflow

Measured synthetic examples

See what changed in the comparison.

The same generated inputs, run with the previous and updated pipelines. Before and after refer to pipeline versions, not a better-looking candidate. These cases test specific failure modes, not human ratings or whole-app fidelity.

Baseline b7139a2d29bc5fd2cae567688e5660b501f509ec
Updated dirty working-tree snapshot fa35542962f731dd8dd9317d5448567023ae4ca66c4fefe9e90bc8de1be4d2e9. Base commit ca87a0923e45211e43222d37ded3fd5084017b74 is not a claim that the measured code equals HEAD.

All results JSON · Report and checks · Exact updated source snapshot

Example 1 / 5

A tiny crop should not invent new colors.

Each 768 × 480 crop contains ten complete 48px periods and the same exact RGB histogram. Width normalization does not resample these inputs. This tests color stability only.

Reference

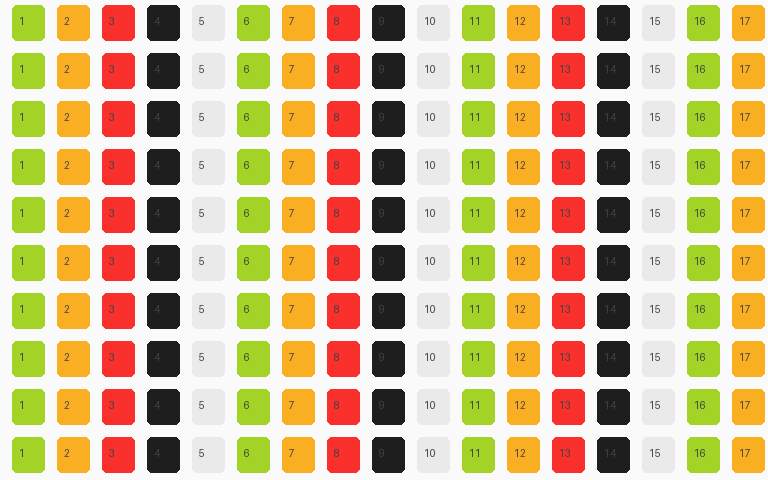

Reference fixture color-periodic-crop-0px.png, crop origin y=0
Candidate · unchanged between pipelines

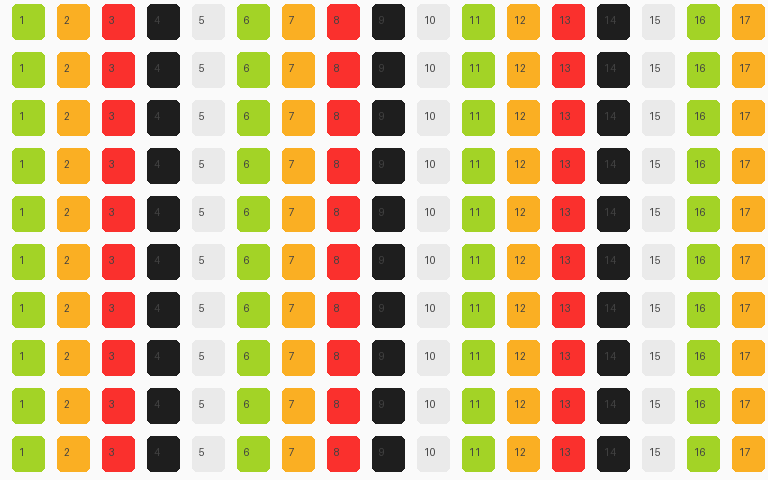

Candidate fixture color-periodic-crop-1px.png, crop origin y=1
Actual color scores by crop origin
CaseBeforeAfter
Origin +0px100100
Origin +1px91.4100
Origin +2px92.2100
Origin +3px98.04100
Origin +4px94.12100

Before · b7139a2

Layout score, +1px
85.59
Mode
widget

After · dirty snapshot fa35542962f7

Layout score, +1px
85.59
Mode
widget

Read the color row separately from layout. Shifting the crop can change structure even when its color proportions stay the same. Widget mode intentionally skips registration.

Inputs, settings and raw evidence

color_periodic_crop_0px

Crop ten complete 48px periods from origin y=0. Exact RGB histogram is unchanged; canonical width avoids normalization interpolation. Only color invariance is expected, not identical layout/overall.

{
